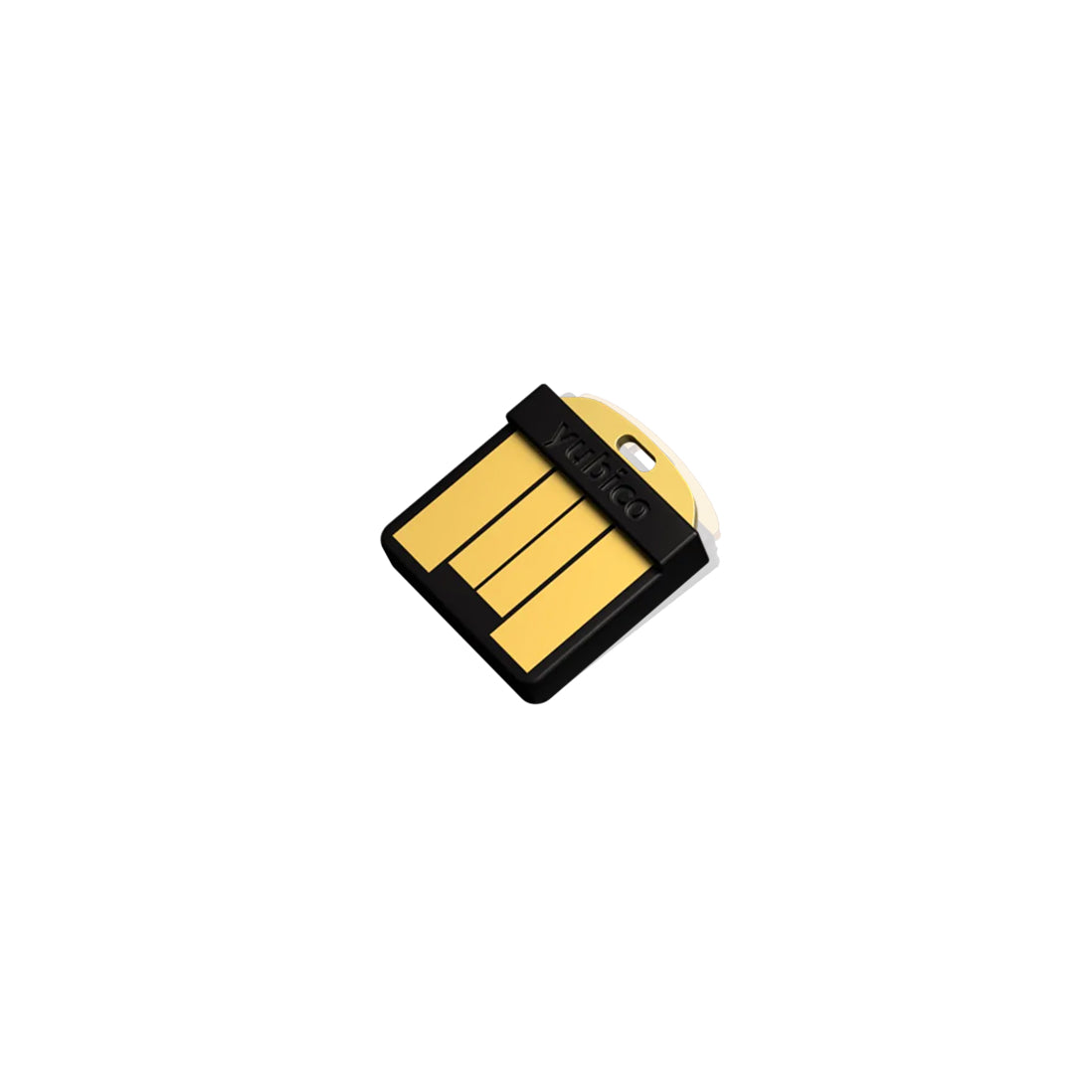

  • YubiHSM 2

    5060408464571

    Notify me when this product is available:

    The YubiHSM 2 is a game changing hardware solution for protecting Certificate Authority root keys from being copied by attackers, malware, and malicious insiders. It offers superior cost effective security and easy deployment making it accessible for every organization. It offers a higher level of security for cryptographic digital key generation, storage, and management, for organizations running Microsoft Active Directory Certificate Services.

    The YubiHSM 2 features are accessible by integrating with an open source and comprehensive software development toolkit (SDK) for a wide range of open source and commercial applications. The most common use case is hardware-based digital signature generation and verification. In additional emerging use cases such as securing cryptocurrency exchanges and IoT gateways are just a few examples of how the world’s smallest HSM can secure modern infrastructures.

    YubiHSM 2 secures cryptographic keys through their entire lifecycle from secure key generation, attestation, secure key storage, secure key distribution, secure key backup all the way to secure key destruction if needed. Screen reader support enabled.

    Product Features (Business)

    • Direct USB Support
    • General Purpose HSM
    • Introduces asymmetric cryptography
    • Windows, Linux, and Mac support
    • USB-A, IP68 rated, Crush Resistant, No Batteries Required, No Moving Parts

    Secure key storage and operations
    Create, import, and store keys, then perform all crypto operations in the HSM hardware to prevent theft of keys while at rest or in use. This protects against both logical attacks against the server, such as zero-day exploits or malware, and physical theft of a server or its hard drive.

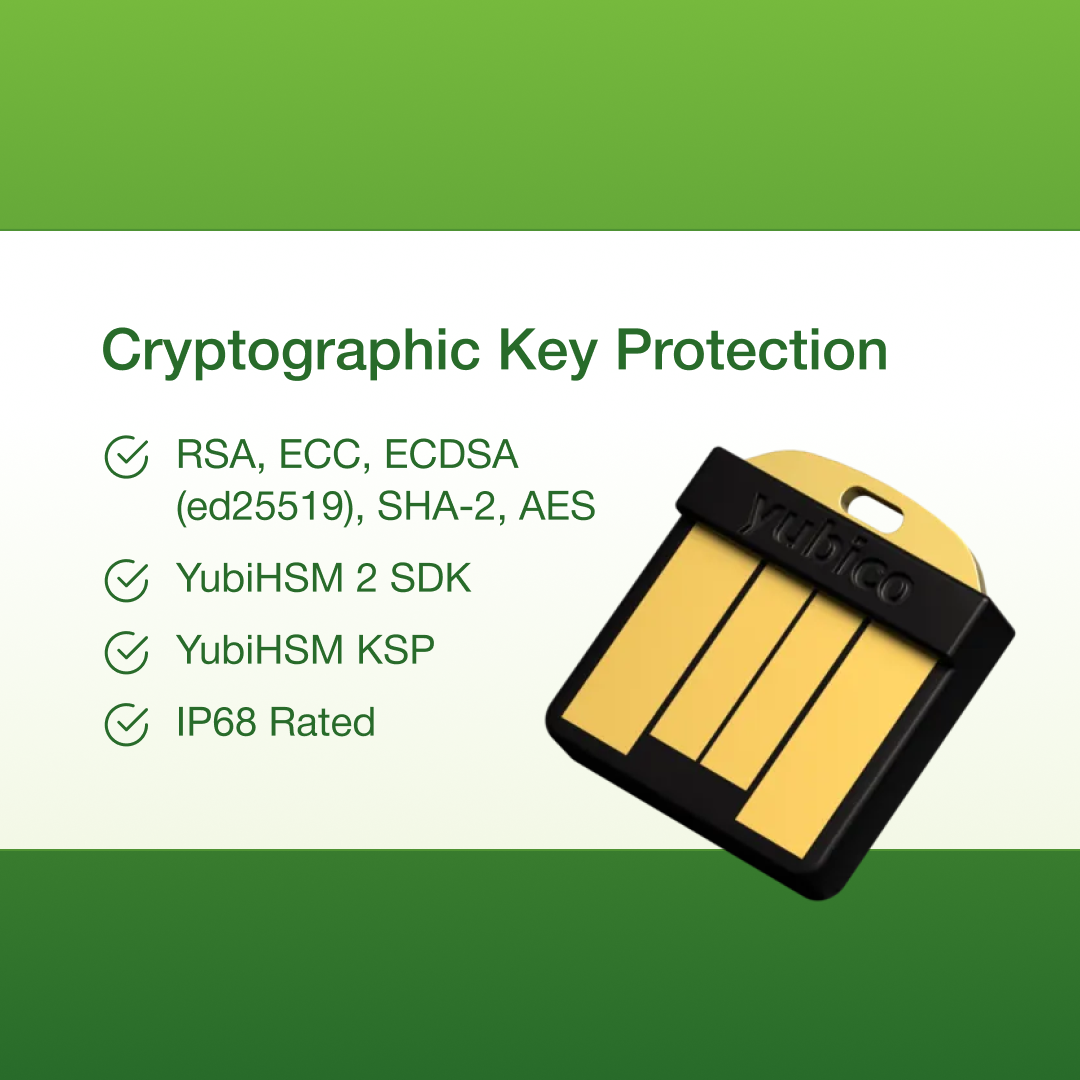

    Extensive cryptographic capabilities
    YubiHSM 2 supports hashing, key wrapping, asymmetric signing and decryption operations including advanced signing using ed25519. Attestation is also supported for asymmetric key pairs generated on-device.

    Secure session between HSM and application
    The integrity and privacy of commands and data in transit between the HSM and applications are protected using a mutually authenticated, integrity and confidentiality protected tunnel.

    Role-based access controls for key management and key usage
    All cryptographic keys and other objects in the HSM belong to one or more security domains. Access rights are assigned for each authentication key at creation time which allow a specific set of cryptographic or management operations to be performed per security domain. Admins assign rights to authentication keys based on its use case, such as a event monitoring app that needs the ability to read all audit logs in the HSM, or a Registration Authority that needs to issue (sign) end user digital certificates, or a domain security admin who needs to create and delete crypto keys.

    16 concurrent connections
    Multiple applications can establish sessions with a YubiHSM to perform cryptographic operations. Sessions can be automatically terminated after inactivity or be long-lived to improve performance by eliminating session creation time.

    Network Shareable
    To increase the flexibility of deployments, the YubiHSM 2 can be made available for use over the network by applications on other servers. This can be especially advantageous on a physical server that is hosting multiple virtual machines.

    Remote Management
    Easily manage multiple deployed YubiHSMs remotely for the entire enterprise – eliminate on-call staff complexity and travel expense.

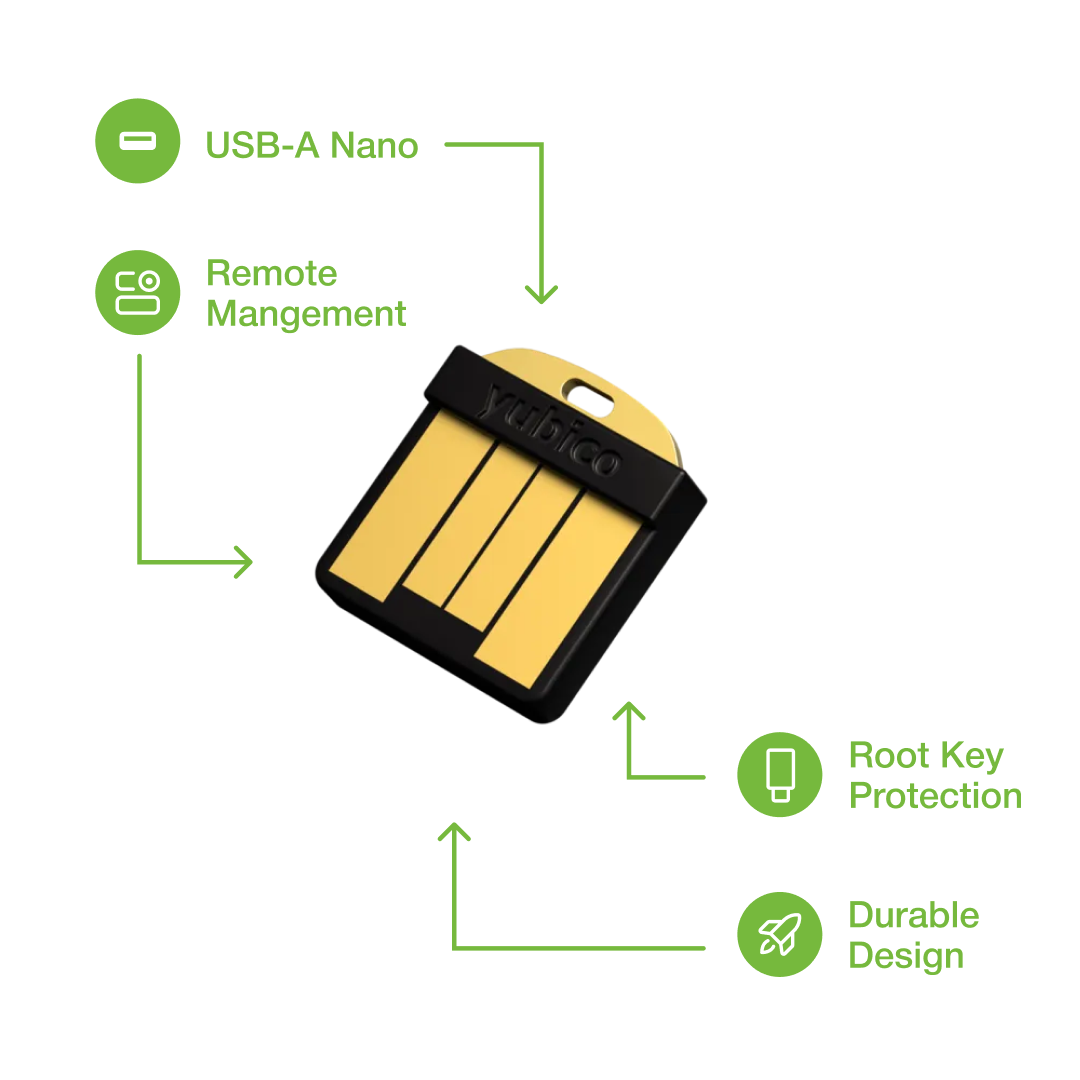

    Unique “Nano” form factor, low-power usage
    The Yubico “Nano” form factor allows the HSM to be inserted completely inside a USB-A port so it’s completely concealed – no external parts that protrude out of the server back or front chassis. It uses minimal power, max of 30mA, for cost-savings on your power budget.

    M of N wrap key Backup and Restore
    Backing up and deploying cryptographic keys on multiple HSMs is a critical component of an enterprise security architecture, but it’s a risk to allow a single individual to have that ability. The YubiHSM supports setting M of N rules on the wrap key used to export keys for backup or transport, so that multiple administrators are required to import and decrypt a key to make it usable on additional HSMs. For example in an enterprise, the Active Directory root CA private key might be key wrapped for 7 administrators (N=7) and at least 4 of them (M=4) are required to import and unwrap (decrypt) the key in the new HSM.

    Interfaces via YubiHSM KSP, PKCS#11, and native libraries
    Crypto enabled applications can leverage the YubiHSM via Yubico’s Key Storage Provider (KSP) for Microsoft’s CNG or industry-standard PKCS#11. Native libraries are also available on Windows, Linux and macOS to enable more direct interaction with the device’s capabilities.

    Tamper evident Audit Logging
    The YubiHSM internally stores a log of all management and crypto operation events that occur in the device and that log can be exported for monitoring and reporting. Each event (row) in the log is hash chained with the previous row and signed so that it’s possible to determine if any events are modified or deleted.

    Direct USB Support
    The YubiHSM 2 can talk directly to the USB layer without the need for an intermediate HTTP mechanism. This delivers an improved experience for the developers who are developing solutions for virtualised environments.

    YubiKeys are made in USA and Sweden (EU). Trust Panda ships globally (except to sanctioned or embargoed countries).

    UPC/GTIN 5060408464571
    USB Type USB-A
    NFC-enabled No
    Firmware 2.2
    Linux CentOS 7
    Debian 8
    Debian 9
    Debian 10
    Fedora 28
    Fedora 30
    Fedora 31
    Ubuntu 1404
    Ubuntu 1604
    Ubuntu 1804
    Ubuntu 1810
    Ubuntu 1904
    Ubuntu 1910
    Windows Windows 10
    Windows Server 2012
    Windows Server 2016
    Windows Server 2019
    macOS 10.12 Sierra
    10.13 High Sierra
    10.14 Mojave
    Cryptographic interfaces (APIs) Microsoft CNG (KSP)
    PKCS#11 (Windows, Linux, macOS)
    Native YubiHSM Core Libraries (C, python)
    Cryptographic capabilities

    Hashing (used with HMAC and asymmetric signatures)
    SHA-1, SHA-256, SHA-384, SHA-512

    RSA
    2048, 3072, and 4096 bit keys
    Signing using PKCS#1v1.5 and PSS
    Decryption using PKCS#1v1.5 and OAEP

    Elliptic Curve Cryptography (ECC)
    Curves: secp224r1, secp256r1, secp256k1, secp384r1, secp521r, bp256r1, bp384r1, bp512r1, curve25519
    Signing: ECDSA (all except curve25519), EdDSA (curve25519 only)
    Decryption: ECDH (all except curve25519)

    Key wrap
    Import and export using NIST AES-CCM Wrap at 128, 196, and 256 bits

    Random numbers
    On-chip True Random Number Generator (TRNG) used to seed NIST SP 800-90 AES 256 CTR_DRBG

    Attestation
    Asymmetric key pairs generated on-device may be attested using a factory certified attestation key and certificate, or using your own key and certificate imported into the HSM

    Performance Performance varies depending on usage. The accompanying Software Development Kit includes performance tools that can be used for additional measurements. Example metrics from an otherwise unoccupied YubiHSM 2

    RSA-2048-PKCS1-SHA256: ~139ms avg
    RSA-3072-PKCS1-SHA384: ~504ms avg
    RSA-4096-PKCS1-SHA512: ~852ms avg
    ECDSA-P256-SHA256: ~73ms avg
    ECDSA-P384-SHA384: ~120ms avg
    ECDSA-P521-SHA512: ~210ms avg
    EdDSA-25519-32Bytes: ~105ms avg
    EdDSA-25519-64Bytes: ~121ms avg
    EdDSA-25519-128Bytes: ~137ms avg
    EdDSA-25519-256Bytes: ~168ms avg
    EdDSA-25519-512Bytes: ~229ms avg
    EdDSA-25519-1024Bytes: ~353ms avg
    AES-(128|192|256)-CCM-Wrap: ~10ms avg
    HMAC-SHA-(1|256): ~4ms avg
    HMAC-SHA-(384|512): ~243ms avg
    Storage Capacity

    All data stored as objects. 256 object slots, 128KB (base 10) max total

    Stores up to 127 rsa2048, 93 rsa3072, 68 rsa4096 or 255 of any elliptic curve type, assuming only one authentication key is present

    Object types: Authentication keys (used to establish sessions); asymmetric private keys; opaque binary data objects, e.g. x509 certs; wrap keys; HMAC keys

    Management Mutual authentication and secure channel between applications and HSM
    M of N unwrap key restore via YubiHSM Setup Tool
    Software Development Kit YubiHSM Core Library (libyubihsm) for C, Python
    YubiHSM Shell (Configuration CLI)
    PKCS#11 Module
    YubiKey Key Storage Provider (KSP) for use with Microsoft
    YubiHSM Connector
    YubiHSM Setup Tool
    Documentation and code examples
    Physical Characteristics Form factor: ‘nano’ designed for confined spaces such as internal USB ports in servers
    Dimensions: 12mm x 13mm x 3.1mm
    Weight: 1 gram
    Current requirements 20mA avg, 30mA max
    USB-A plug connector
    Safety and environmental compliance FCC
    CE
    WEEE
    ROHS
    Host Interface Universal Serial Bus (USB) 1.x Full Speed (12Mbit/s) Peripheral with bulk interface.
